MagFan

MagFan

from 1,980.00

The MagFan family consists of three different versions: MagFan, MagFan Plus, and MagFan ONe.

MagFan Plus and MagFan ONe will be available June 2019.

Tiered volume discounts are available. Contact us for more information.

>   Plug-and-run
>   Built to last, maintenance free
>   Calculated service life 100,000 +hr
>   Runs on 95% of the world’s power grid (85VAC to 265VAC)
>   Reduces CO2 emissions by at least two thirds
>   Reduces energy bills by 70% compared to top ten competitors
>   Saves 75% on transport costs
>   Soft start and acceleration
>   Nearly silent start and stop operation

Model:
Quantity:
Add To Cart

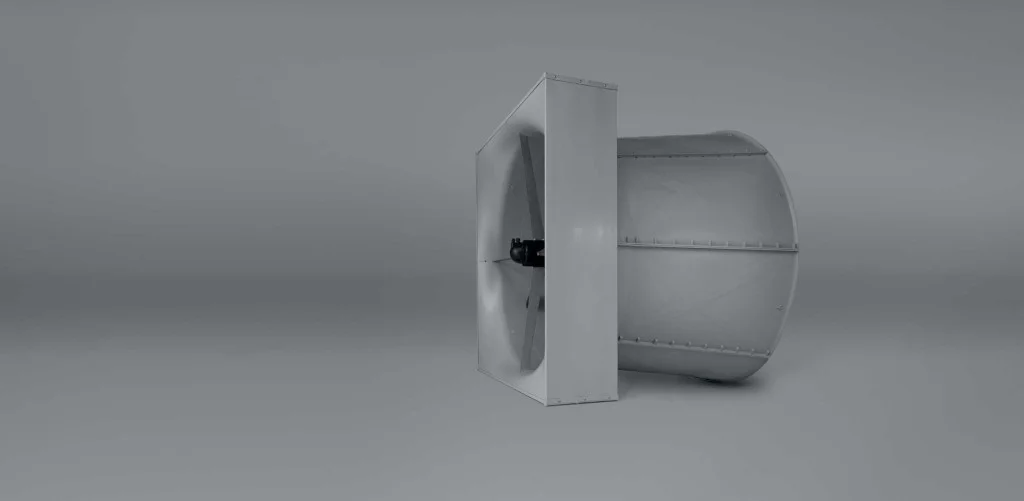

MagFan quite simply is the most efficient wall fan on the world market.

In a direct comparison against leading suppliers, MagFan offers at least 70% lower energy consumption at equivalent flow rates.

Efficiency at normal flow rates and neutral pressure is 9W/1000m³/h (65 cfm/W). The capacity on the MagFan ranges from 4000 to 72,000 m³/hour (2354 to 42,377 cfm) at neutral pressure.




MagFan offers an unprecedented combination of high capacity, high pressure and extreme efficiency.

The unit completely changes the perception of a wall fan. Wherever energy is a limited resource and high capacity, high flow rates and high pressure is needed, MagFan is the answer. The unit is totally corrosion resistant and requires no maintenance, and the estimated service life of the product is 100,000+ hrs.

Its stackable components offer safe, ultra-compact shipping, and the fan’s simplistic design and rugged construction make it the simplest to install easiest to run fan ever. With its variable speed drive your MagFan starts slowly and quietly and accelerates to the requested speed.

MagFan is maintenance free, it is 100% recyclable, and it will run on 95% of the world’s electrical grid.

DACS has won the Danish award for Sustainable Products with MagFan.

MagFan was Best in Test at Bess Lab. View the report here.

MagFan, MagFan Plus, and MagFan ONe

MagFan

MagFan is a speed controlled fan. It is equipped with a 1.2kW motor and comes with a dedicated VFD (MagDrive). The MagDrive allows MagFan to operate at variable speed from 160 rpm to 670 rpm and produce anything from 2000 m3/h  (1180 cfm) to 70.500 (41450 cfm) at 0 Pascal.

  • Air Flow Ratio 0.81 (capacity @ 0.20” WC / capacity @ 0.05” WC)

  • Cfm/watt: 28 @ 645 rpm and 0.1” WC

For more information about MagFan click here. For the complete performance data sheet click here.

MagFan Plus

MagFan Plus is a speed controlled fan. It is equipped with a 2.2kW motor and comes with a dedicated VFD (MagDrive). The MagDrive allows MagFan to operate at variable speed from 160 rpm to 750 rpm. Capacity from 2000 m3/h (1180) to 79.490 m3/h (46786 cfm) at 0 Pascal.

  • Air Flow Ratio 0.86 (capacity @ 0.20” WC / capacity @ 0.05” WC)

  • Cfm/watt 23 [measured at full speed (750 rpm) @ 0.1” WC]

For more information about MagFan Plus click here. For the complete performance data sheet click here.

MagFan ONe

MagFan ONe is an ON/OFF fan equipped with a 1.8 kW motor. The motor operates at 720 rpm (50 Hz). Capacity 69.500 m3/h (40900 cfm) at 0 Pascal (0” WC) and 62.700 m3/h (36900 cfm) at 25 Pascal (0.1” WC).

  • Air Flow Ratio 0.86

  • Cfm/watt 22.4 @ 0.1” WC

For more information about MagFan ONe click here.

For the complete brochure on all three fans click here.


TECHNICAL SPECIFICATIONS

Housing and cone
PP-HD, gray (RAL 7040)
PVC, gray (RAL 7040)
Impeller blades
Celstran Technofiber
Brackets, guards
Stainless steel / AISI 304 / A2
Dimensions assembled
Weight: 50 kg /110 lbs (MagFan), 90 kg/200 lbs (MagFan Plus)
L x W x D (mm): See drawing
Impeller diameter: 1430 mm/56.5”
Drive
Water proof speed drive
cos (phi) / power factor at full load: 0.99
In-built drive and motor protection
Motor
Permanent Magnet Synchronous 3-phase
Output (continuous duty): 1.2kW @ 660 RPM (MagFan), 2.2kW @ 750 RPM (MagFan Plus)
Insulation class F, 170°C magnets
In-built double klixon thermal protection
Power supply
Universal, 100-265VAC, 50/60Hz (MagFan and MagFan Plus), Three phase, 360-440VAC, 50/60Hz (MagFan Plus)
